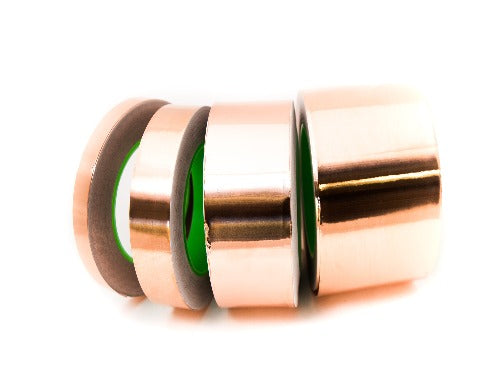

Copper Conductive Tapes
Copper Conductive Tapes
Bertech Copper Conductive Tapes are also known as EMI Shielding Tapes or RFI Shielding Tapes and are made from thin copper foil with an acrylic conductive adhesive.
These copper conductive tapes are packaged as 36 yard-long rolls on a 3 inch core and are available in widths of up to 15 inches. The removable paper liner makes it easy for handling and die cutting. Copper Conductive Tapes provide an excellent conductivity from application substrate through the conductive adhesive to the copper foil backing.
They are used for building ground systems, static charge draining, cable wrapping and surface contact to non-solderable material, and point-to-point electrical contact. In addition, they are known to act as an excellent barrier to slug and snails from entering into protected areas.
Applications: Aerospace Assembly, EMI Shielding, RFI Shielding, Slug Repellants, Cable Shielding, Crafts, Electronic Assembly and Semi-conductor Facilities.
Custom sizes are available upon request.
Part Number | CFT Series |
---|---|
Color | Copper |
Total Thickness | 2.6 mil |
Adhesive type | Conductive Acrylic |
Elongation | 5% |
Material Type | Copper Film |
Resistivity | <10e3 |
---|---|
Adhesion Strength | 35 oz./in. |
Breaking Strength | 25 lbs./in. |
Shielding Effectiveness | 60 - 80 db |
Static Decay | 0.5 Seconds |
UNSPSC Code | 31201503 |
