ESD General Purpose Mat Kits
ESD General Purpose Mat Kits
Couldn't load pickup availability

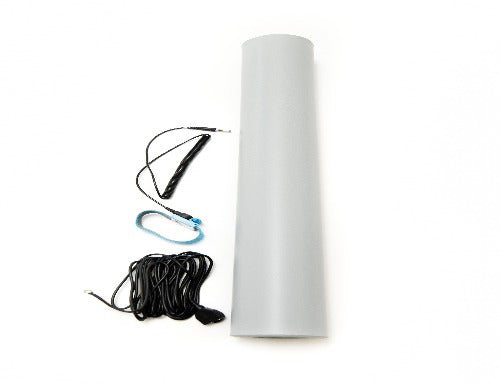

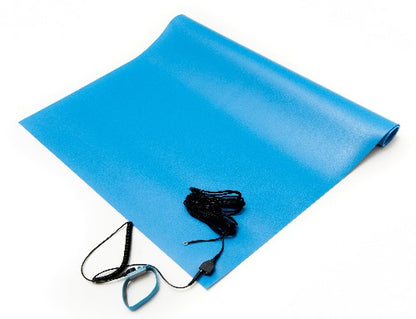

ESD General Purpose Mat Kits are made of a single layer homogenous polymer mix with ESD properties. These ESD Mat kits include a mat, an ESD fabric adjustable wrist strap (AFWSB121M), and a grounding cord (CGC151M). They have a light texture and are designed to provide a static safe work surface to protect static sensitive devices. They are low cost, durable, easy to cut and are reversible. Service temperature is -20 degrees F to 160 degrees F. These mat kits are also known as ESD Table Top Mat Kits or ESD Worksurface Mat Kits.
Applications: Aerospace Assembly, Computer Operators, Computer Technicians, Electronic Assembly, Fiber Optics Manufacturing, Hospitals and Solar Industries
Custom sizes are available upon request.
Part Number | 1059 Series |
---|---|
Color | Blue or Gray |
Brand Name | Bertech |
Material Type | ESD Safe Polymer Mix |
Thickness | 0.094"±0.010" ; 3/32" |
Surface Resistivity | 10e9 - 10e10 |
---|---|
Tensile Strength | 900 lbs./in.² |
Elongation | 160% |
Tear | 160 lbs./in. |
UNSPSC Code | 46182105 |
