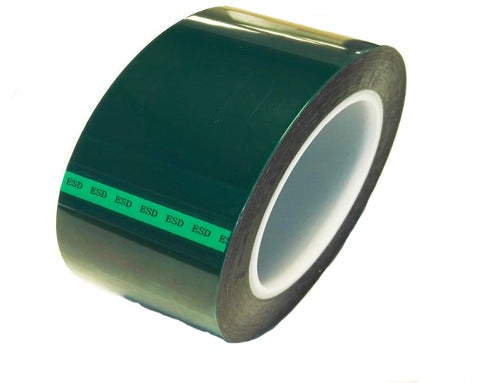

ESD Polyester Tapes

ESD Polyester Tapes

Regular price $6.75 USD
Regular price Sale price $6.75 USD
Sale Sold out

ESD Polyester Tapes are made from 1 mil thick polyester film with 1.5 mil of silicone adhesive. They are designed for high temperature masking of electronic devices that are sensitive to electrostatic charge. These tapes are tear resistant and removes without leaving any residue. They are packaged as 72 yard-long rolls on a 3 inch core with an ESD symbol at the tab of the roll. These ESD Safe Polyester Tapes are available in various widths of up to 20 inches.



Custom sizes are available upon request.


Applications: Masking Electro-Static sensitive devices and components, Shipping and storage of electro-static charged material.


Part Number ESDBPT and ESDGPT Series
Color Blue and Green
Film Thickness 1.0 mil
Adhesive Thickness 1.5 mil
Total Thickness 2.5 mil
Material Type Polyester with ESD Properties


Tensile Strength 25 lbs./in.
Resistivity 5x10e6 to 5x10e8
Static Charge <150V - Removal from roll
Dielectric Strength 4,200 Volts
Operating Temperature -400C to 1800C
UNSPSC Code 31201503
