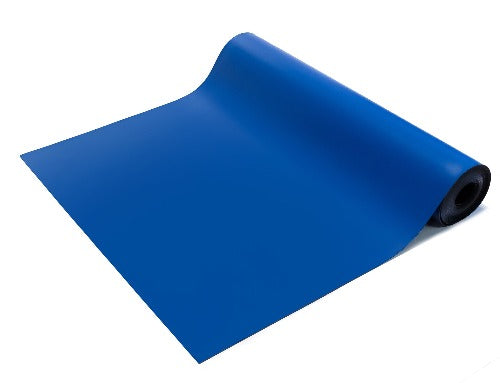

ESD Soldering Mat Rolls

ESD Soldering Mat Rolls

Regular price $161.25 USD
Regular price Sale price $161.25 USD
Sale Sold out

ESD Soldering Mats are designed for electronic repair or assembly facilities to protect ESD sensitive components during the soldering process. These ESD mats offer resistance up to 190 degrees Fahrenheit. They are made of two layers - a blue static dissipative rubber layer at the top and a black conductive rubber layer at the bottom. They are available in 2 foot, 2.5 foot, and 3 foot widths. ESD Soldering Mats offer excellent resistance to oil, grease, and most common solvents, hot solders and soldering irons. They are also known as Two Layer ESD Rubber Mats.


Custom sizes are available upon request.


Applications: Electronic Assembly, Electronic Repair Facilities, Soldering in High Temperature Setting.


Part Number 2059S Series
Color Blue
Brand Name Bertech
Material Type ESD Safe Two Layer Rubber
Thickness 0.080"±0.010" ; 5/64"
UNSPSC Code 46182105

Resistance to Ground (Rtg) 8x10e6-8
Point to Point Resistance (Rtt) 2x10e6-8
Available Widths 2 ft., 2.5 ft., and 3 ft.
Standard roll length 50 feet
Tensile Strength >1000 PSI
Temperature Resistance 190° F
