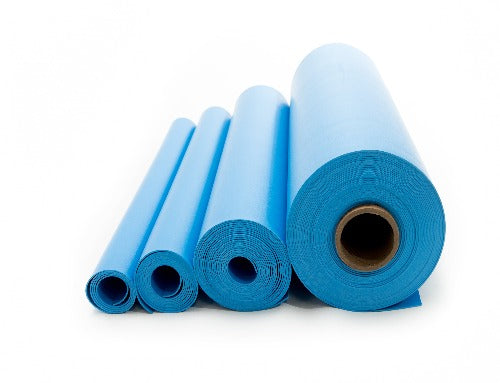

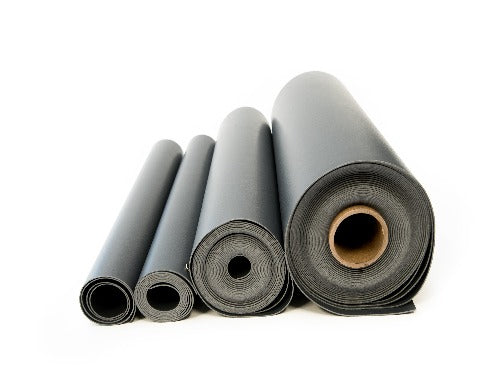

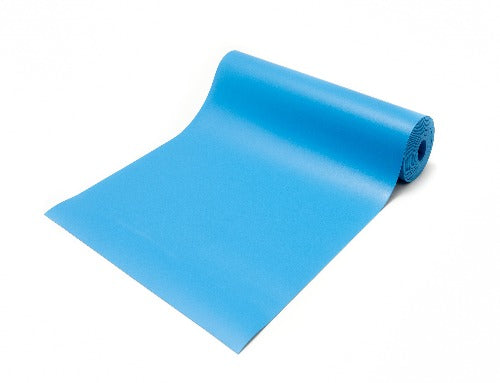

ESD Vinyl Mat Rolls

ESD Vinyl Mat Rolls

Regular price $206.00 USD
Regular price Sale price $206.00 USD
Sale Sold out

ESD Vinyl Mats are made in the USA. They are made from a homogeneous solid vinyl material with a buried conductive layer between two layers. A standard roll is 50 feet long. These ESD mats are ideal for static dissipative and flexible work surfaces required for static sensitive devices. These ESD vinyl mats are considered to be our highest quality mats and the best at maintaining an ESD Safe environment. Suggested service temperature is from -20 degrees F to 160 degrees F. They are also known as ESD Three Layer Mats.


Custom sizes are available upon request.


Applications: Aerospace Assembly, Computer Operators, Computer Technicians, Electronic Assembly, Fiber Optics Manufacturing, Hospitals and Solar Industries


Part Number 3059 Series
Color Blue or Gray
Brand Name Bertech
Material Type ESD Safe Vinyl
Thickness 0.094′′ ± 0.010′′; 3 /32′′
UNSPSC Code 46182105

Surface Resistivity 3.0x10e7 - 9.5x10e8 ohms/sq.
Available Widths 2', 2.5' and 3'
Standard roll length 50 feet
Tensile Strength 900 lbs./in.² minimum
Elongation 125% minimum
Tear 150 lbs./in. minimum
